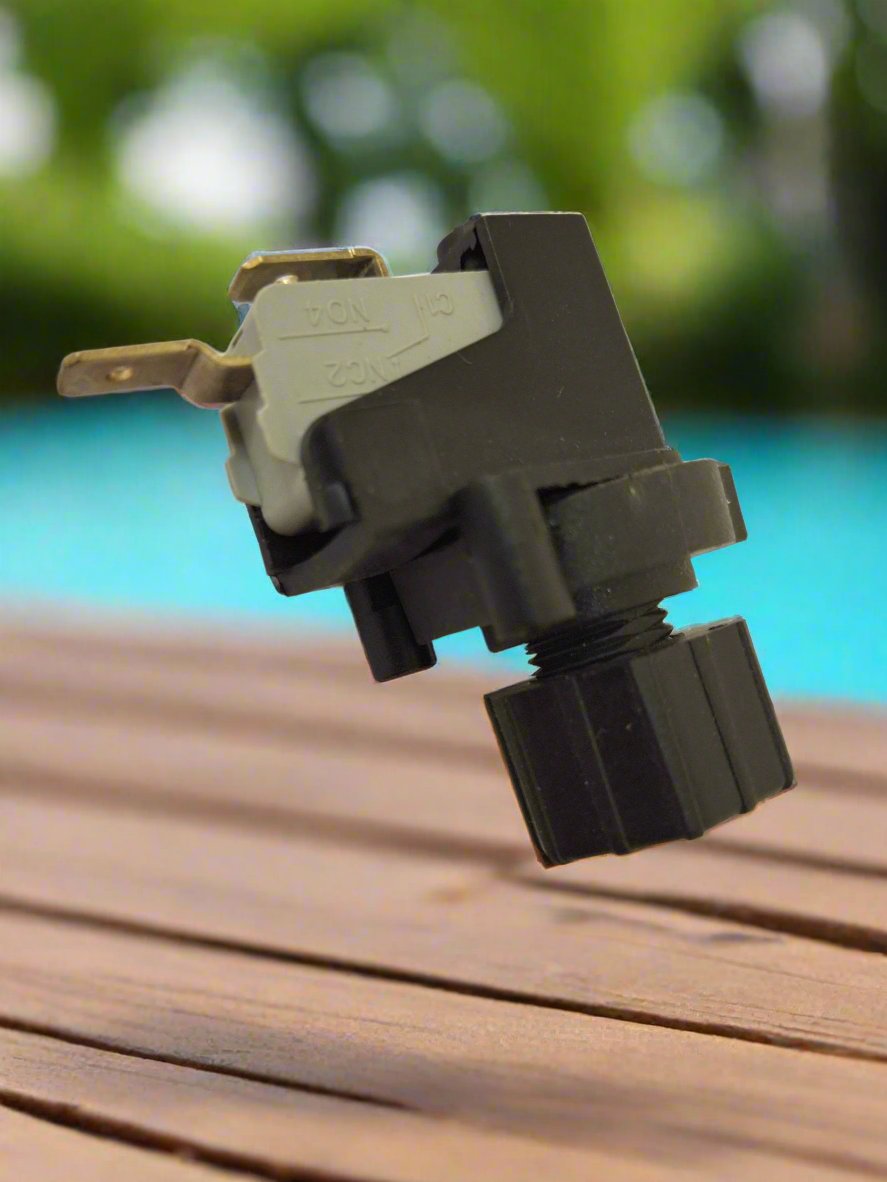

Product Overview This micro switch pneumatic operator is a standard component in most spa and hot tub air switch systems It provides dependable control over air activated switches and is built to handle typical spa electrical loads
Specifications:
Electrical Rating: 16 Amps @ 240 Volts AC
Note: Overloading the switch may reduce its service life
Mounting Hole Size: 12.8 mm (0.5")
Maximum Panel Thickness: 6.4 mm (1/4")
Includes: Securing nut for easy installation
Air Line Operating Distance: Recommended maximum of 2–3 meters
Terminals: Silver-plated 1/4" (6.4 mm) spade connectors for reliable contact
Application Ideal for spa hot tub and whirlpool systems using pneumatic air switch mechanisms
