Meet the Waterco Swing Check Valve 50mm — a transparent-top, spring-loaded non-return valve built to guard pumps, streamline solar pool systems, and simplify long suction runs. This valve is engineered to keep prime intact, prevent backflow, and give you clear visibility of flow status at a glance.
Why this valve stands out
-

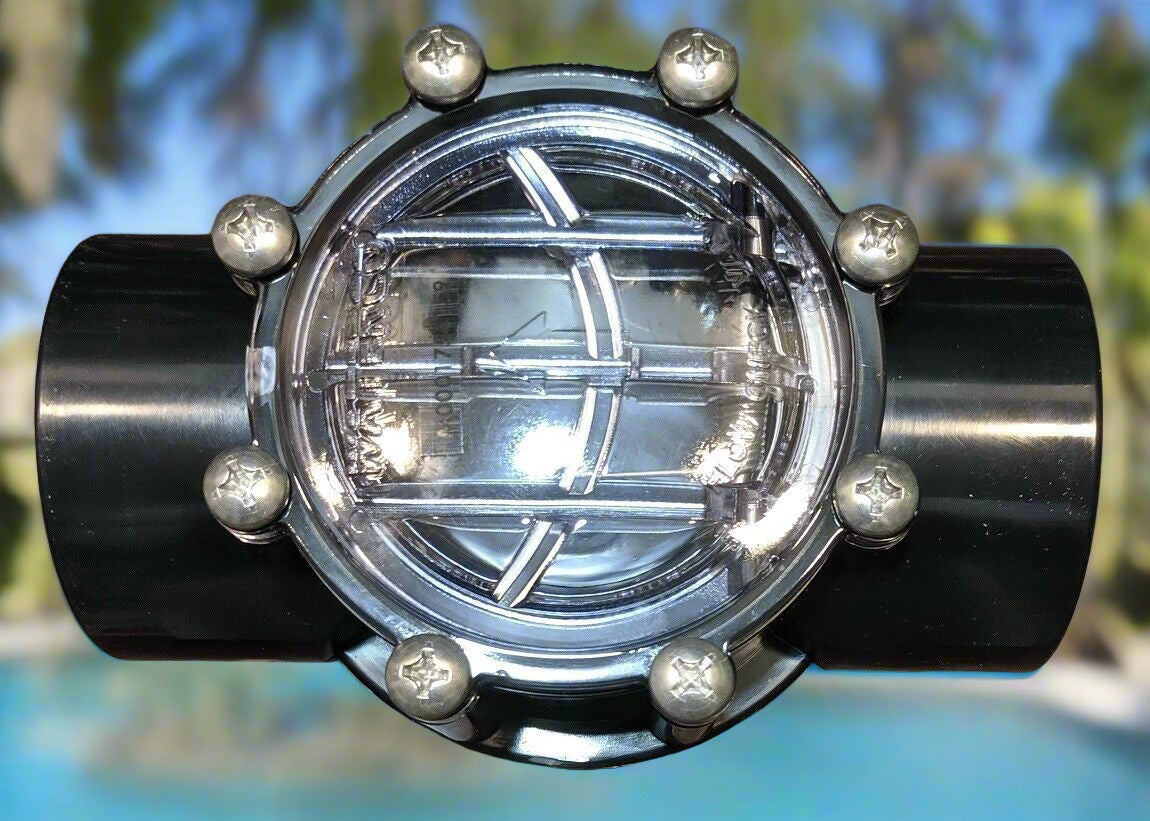

See-through top for quick diagnostics — visually confirm that flow is proceeding forward and spot any obstructions without disassembly.
-

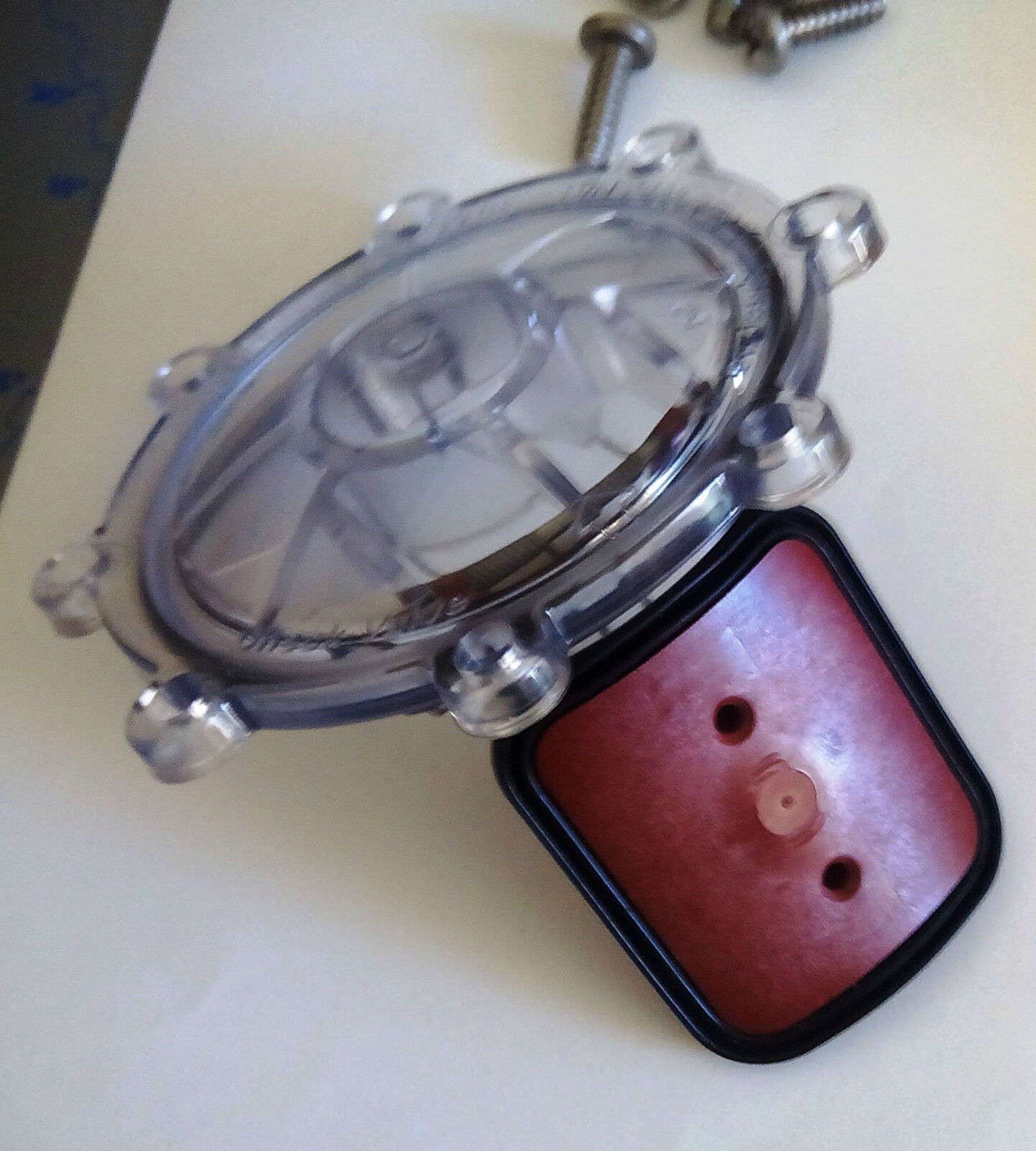

180° swing, spring-loaded design — reliable backflow protection in any orientation: vertical, horizontal, or even upside down, which is essential for flexible pool and solar layouts.
-
No calibration required — straightforward installation that primes automatically, reducing downtime and setup fiddling.
-

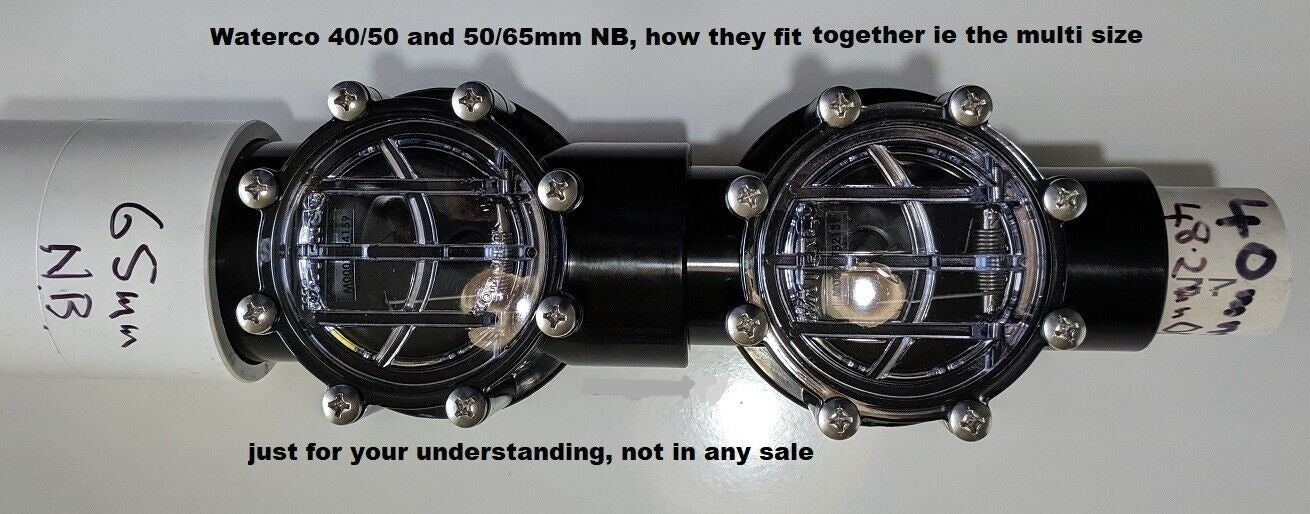

50 mm internal bore, 65 mm external fittings — the internal pipe inside the valve is 50 mm and glues into 50 mm pipe, while the outside accepts standard 65 mm fittings, making retrofits and connections simple.
-
Protects your pump and prime when the suction line is long — especially important if the filter multiport valve is old or sucking air, or if the pump and filter sit more than 600 mm above the pool water level.
-
Reduces water loss and air ingress — air bleeds back through the filter backwash valve, helping maintain prime and minimizing lapses in flow due to hair and lint pot buildup.
Who should consider this valve
- Pool owners with solar heating systems who need dependable backflow prevention and easy inspection.
- Installers retrofitting older pools where long suction lines and elevated pump/filter setups are common.
- Anyone seeking a simple, durable safeguard on the suction side to prevent pump damage from air and backflow.
Practical use cases and tips
- Use on the suction side of pumps in solar pool systems to maintain prime during shade changes or seasonal flow variations.
- Ideal when the pool’s filter valve is aging or when a long suction run increases the risk of air pockets forming.
- Position the valve so the 50 mm pipe mates cleanly on the inside and 65 mm fittings sit on the outside for a secure, leak-free connection.
In short, the Waterco Swing Check Valve 50mm is a focused, field-proven solution for protecting your pump, preserving prime, and delivering dependable performance in varied pool setups. If you’re upgrading a solar system, dealing with long suction lines, or simply want a clear, maintenance-light backflow prevention valve, this model offers a pragmatic, durable choice.
